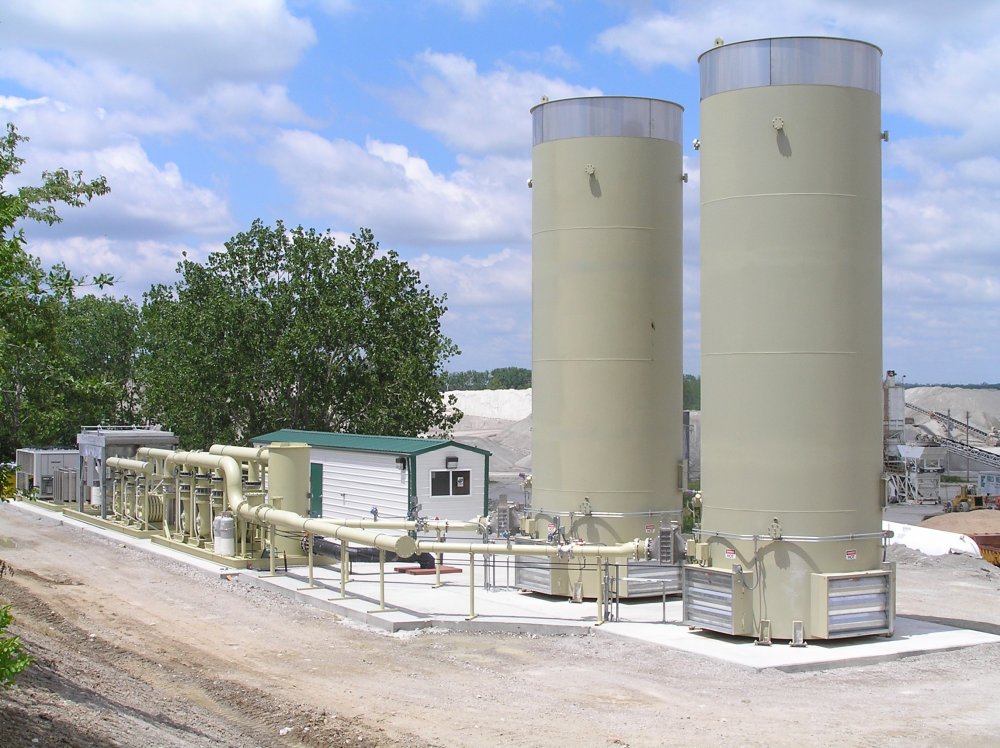

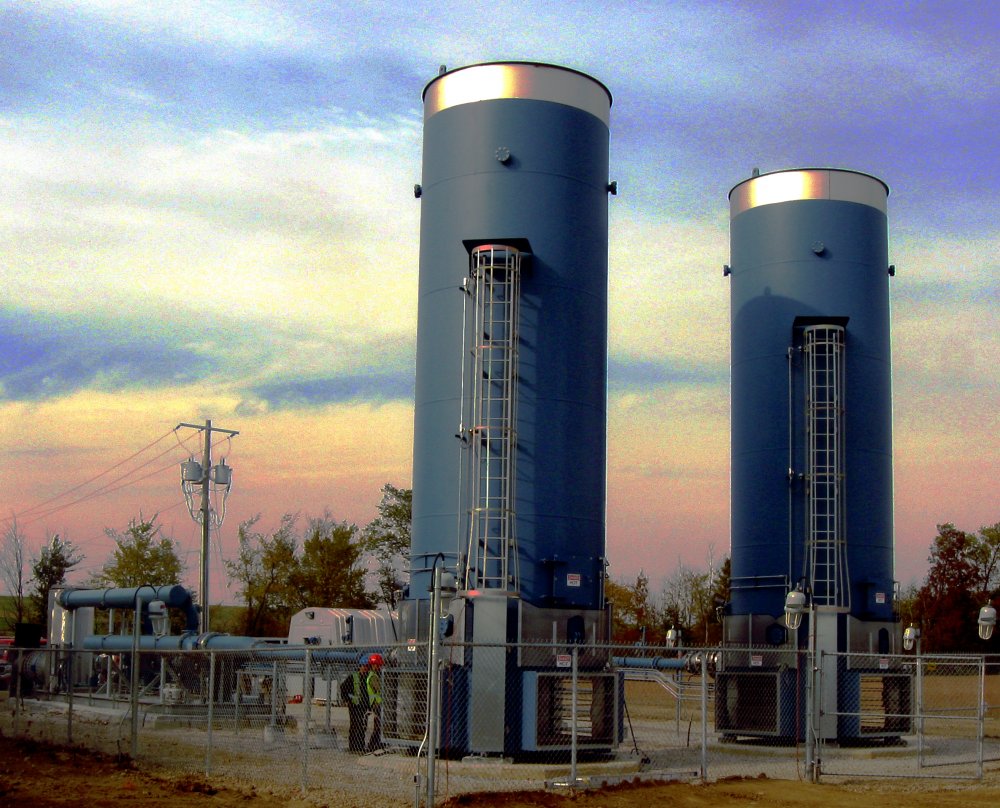

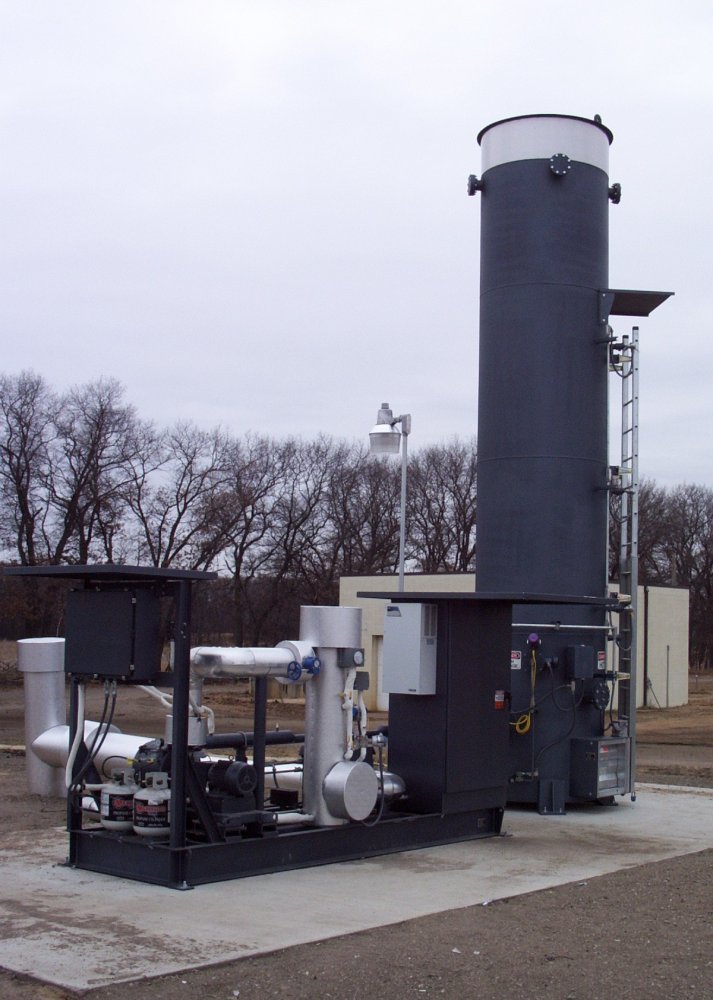

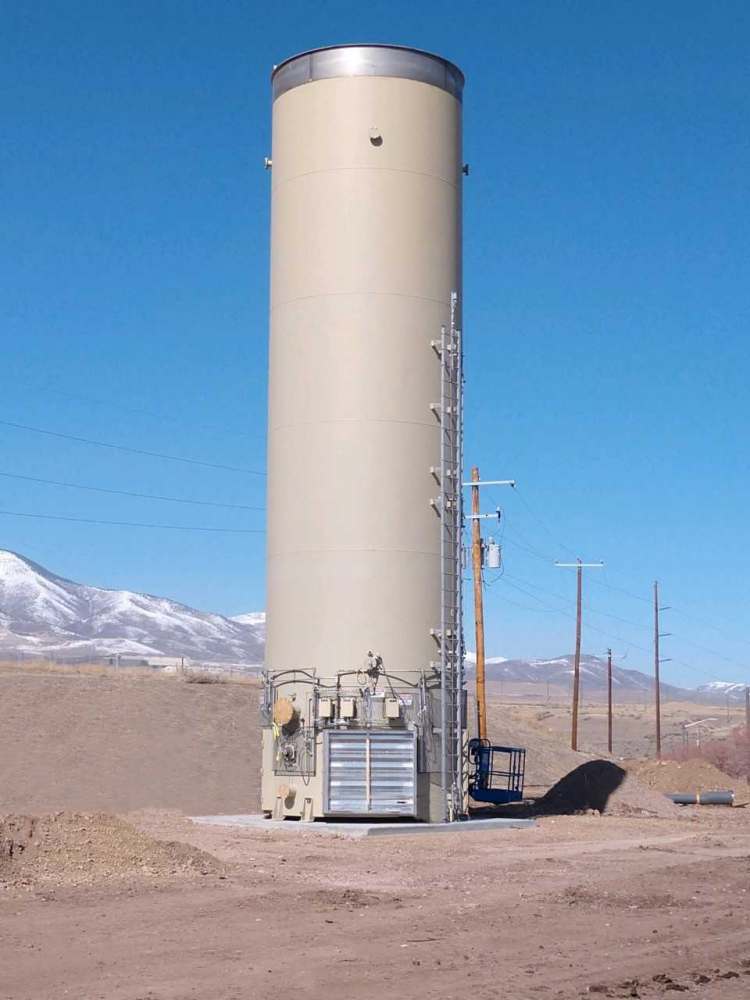

Enclosed Ground Flares

PEI designs and manufactures Enclosed Flare Systems and stand-alone Enclosed Flares (EGF) that meet or exceed most air quality regulatory management agency requirements for maximum by-product of combustion emissions and minimum destruction and reduction efficiencies (DRE). Various burner technologies are incorporated in PEI Enclosed Flares, depending on the specific site emission requirements and type of gases to be combusted. All PEI designed flare systems offer very low noise levels and zero rumble. Specific attention is given to offering the lowest manifold and burner back pressures in the industry. All PEI burner systems feature low carbon stainless steel materials of construction, and our low to medium BTU was gas burners also feature cast refractory, venturi shaped port insets that produce a highly efficient mixing engine for educing up to 60% of the theoretical stoichiometric air requirement as primary air, prior to combustion. All stainless steel waste gas burners are provided with a two-year warranty against defects in materials and/or workmanship.

Enclosed Ground Flares are currently employed as remediation devices where air quality regulations require guaranteed compliance with maximum NOx and CO emissions, as well as minimum reduction and destruction efficiencies. Compliance can be verified via industry and EPA standard measurement and monitoring techniques.

A description of the theoretical by-products of combustion & destruction efficiency

Features

  • Low NOx and CO
  • Externally Adjustabe Internal Primary Air Dampers
  • Very Low Noise, Zero Rumble
  • Low Manifold Pressure Requirements
  • 100% S.S. Burner w/ Refractory Venturi Inserts

Benefits

  • Meets Nationwide Emission Standards
  • Easy To Tune During Source Testing, While Flare Is In Operation
  • Ideal For Noise Sensitive Areas
  • Reduces Blower HP Requirements
  • Long Burner Life

Standard

  • Stainless Steel Burner (2 yr Warranty)
  • High Temperature Louvers
  • U.L. Listed Flame Safeguard Control Panel
  • 4” Ceramic Fiber Blanket Insulation (250 °F Skin Temperature)
  • Stainless Steel Weather & Heat Protection at top of flare
  • 1200 °F Paint System

Additional Features

  • Ladder & Platform
  • Heat Shield
  • Condensate Destruction System
  • Purge Blower
  • Auxiliary Fuel System
  • Flame Arrester
  • Safety Shutdown Valve
  • Other Fuels & Waste Gases
  • Custom Ratings, Low Turndowns
